YOU CAN COUNT ON OUR EXPERTISE

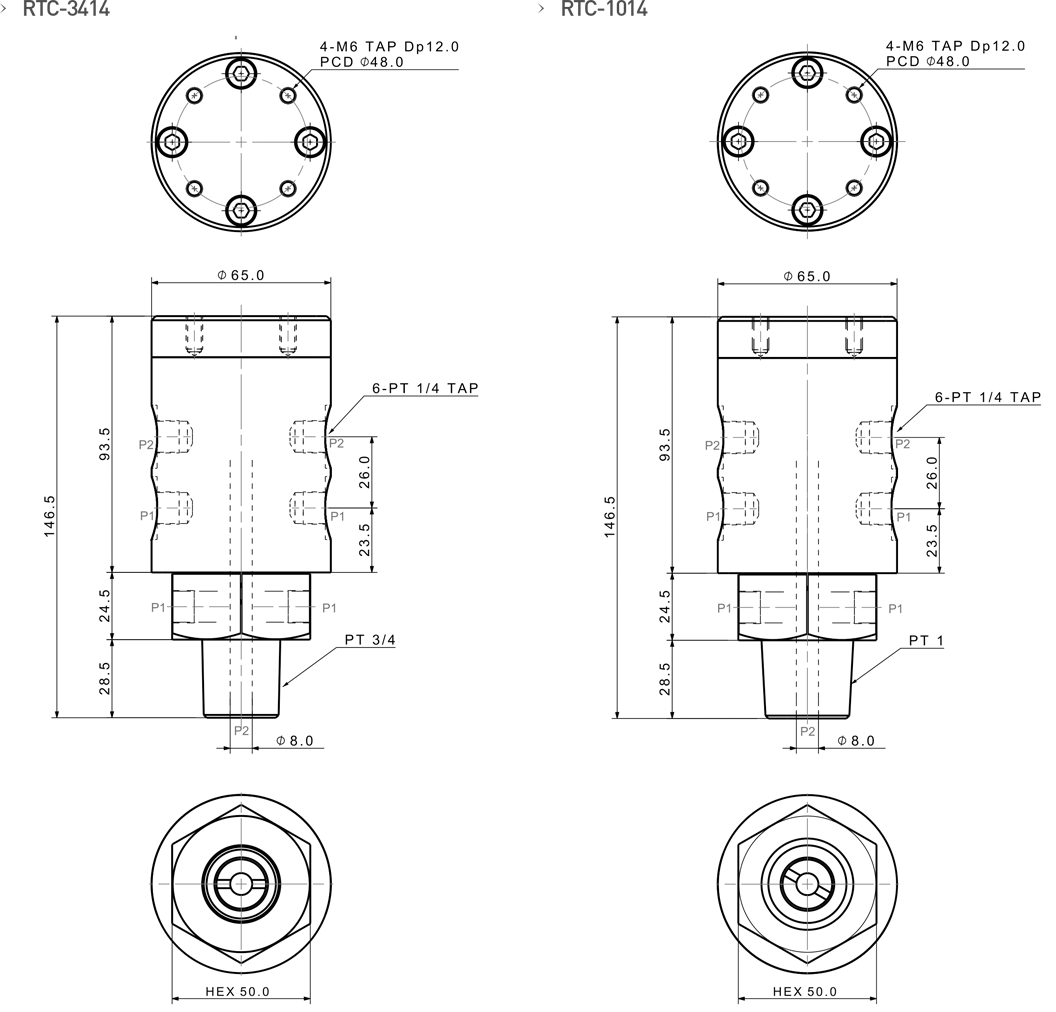

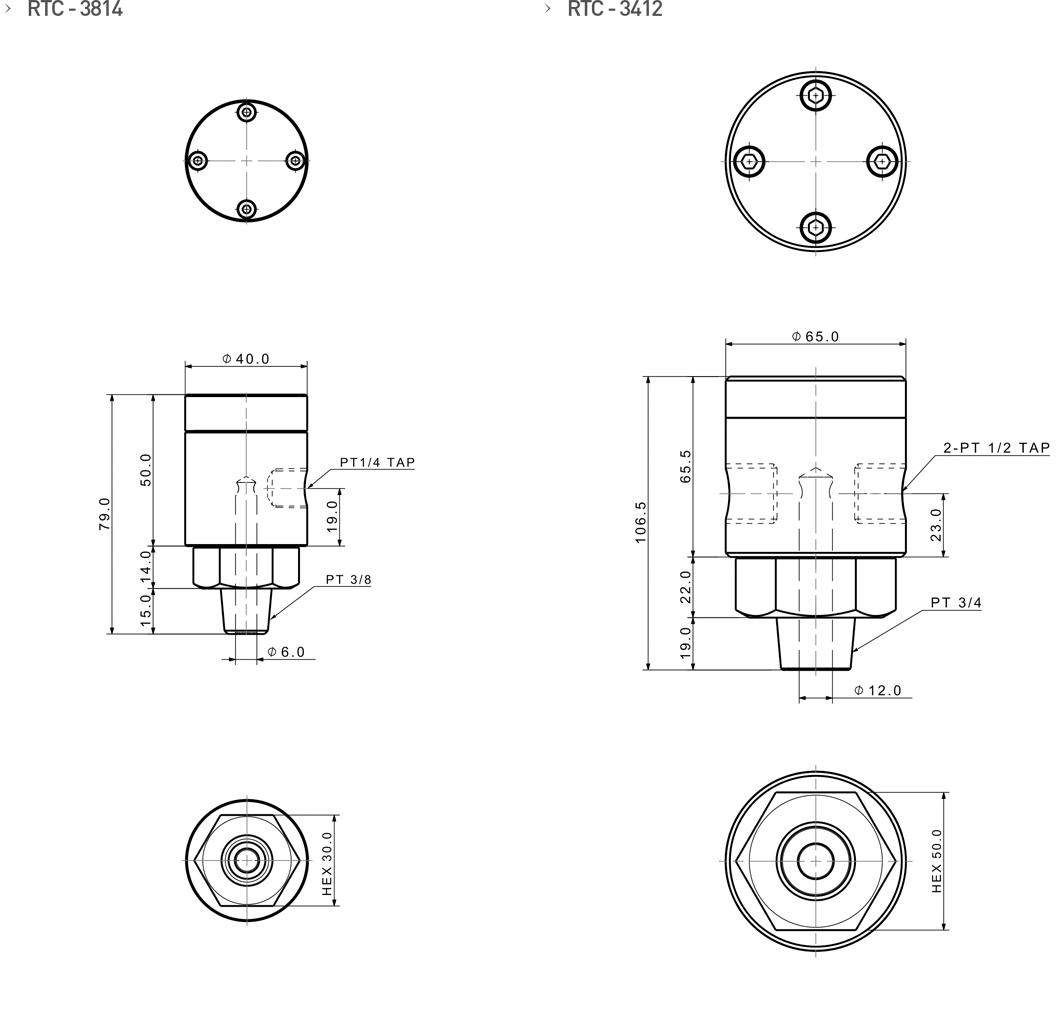

| MODEL NO. | RTC-3814 | RTC-3412 | RTC-3414 | RTC-1014 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Number of Lines | 1 | 1 | 2 | 2 | ||||||||||
| Fluid | Hydraulic Oil, Air, Cutting Fluid | |||||||||||||
| Max. Operating Pressure | 150kgf/㎠ | |||||||||||||
| Max. Revolutions per Minute | 120rpm | |||||||||||||
| Operating Temperature Range | 0~70℃ | |||||||||||||
| Weight | 0.55 kg | 1.93 kg | 2.7 kg | 2.7 kg | ||||||||||
| Download | 2D | 3D | 2D | 3D | 2D | 3D | 2D | 3D | ||||||
 |
 |
 |
|
|
|
|
|
|
|
|
|
|||
